Wire & Nails
Wire

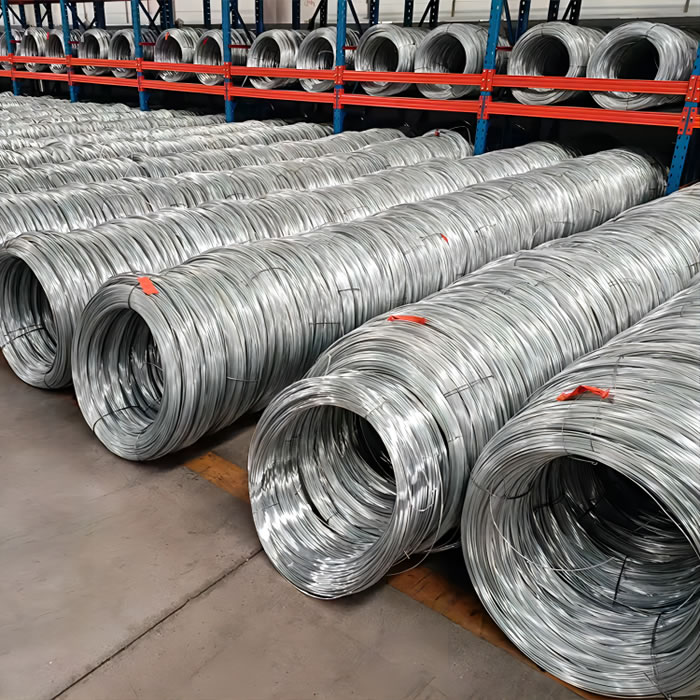

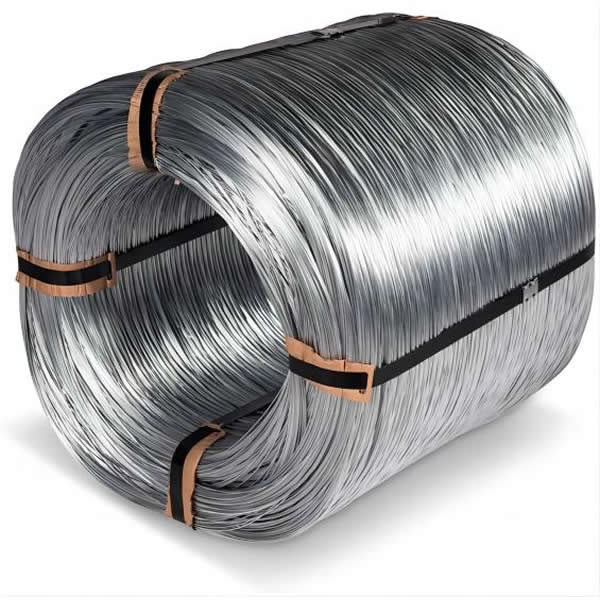

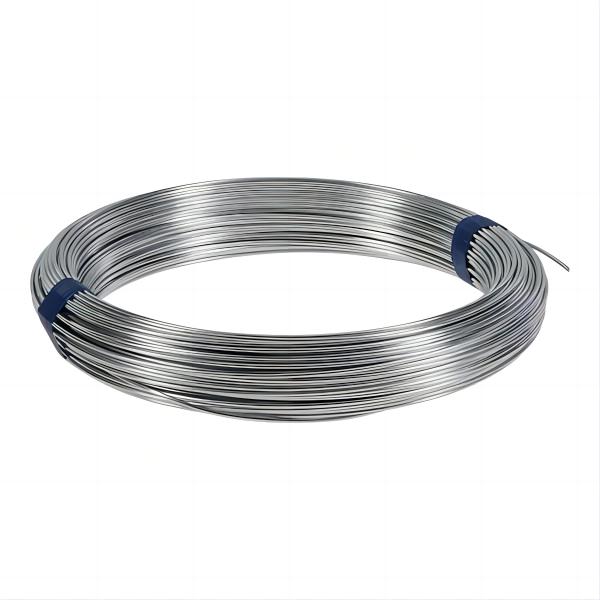

Galvanzied iron wire Can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire. Single coil package can be as small as 1 kg and up to maximum 500 kg per coil.
Type: Galvanized wire also coalled galavnized iron wire, GI wire. It devided into electro galvanized wire, hot-dipped galvanized wire.
Technology and features: Normally for electro galvanized wire zinc coated is 15-20g/M2, the efficacy is slow, zinc film appears uniform, thin, bright shining. The property of anti-corrosion, anti-rust keeps in several monthes.
Hotdipped galvanized wire zinc coated is 40-50g/m2, 100g/m2, 200g/m2, 300g/m2. The efficacy is fast, with Thick zinc coating the zinc film is nonuniform, the color not so bright as electro galvanized wire, but is has good anti-corrosion, anti-rust performance that keeping in more than ten years in outside environment.

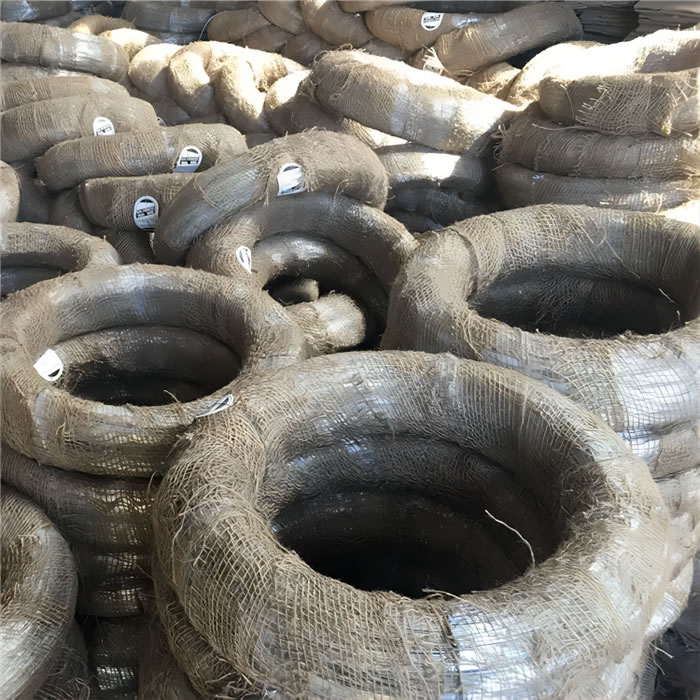

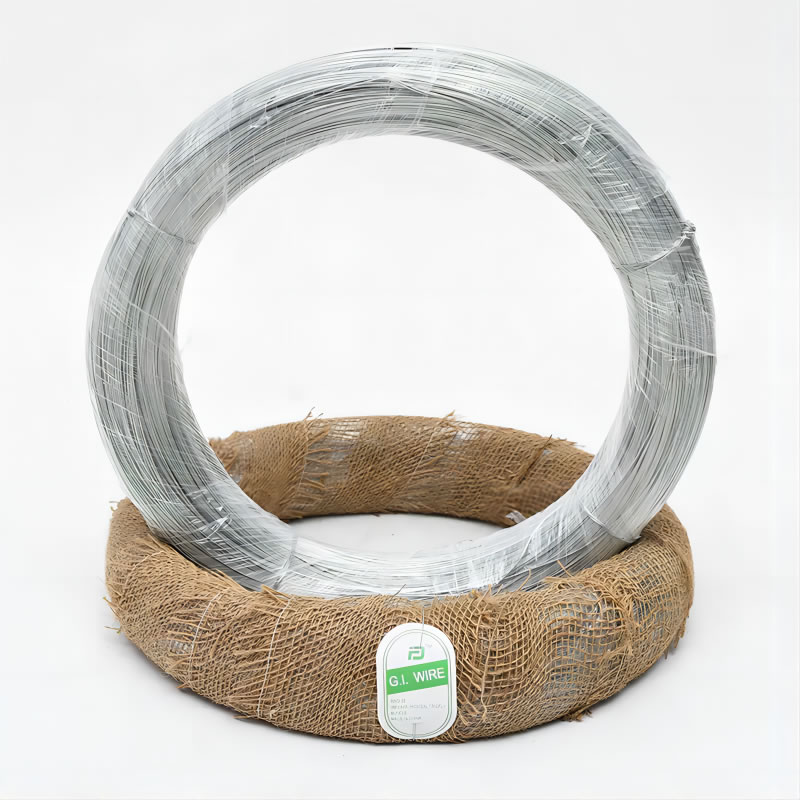

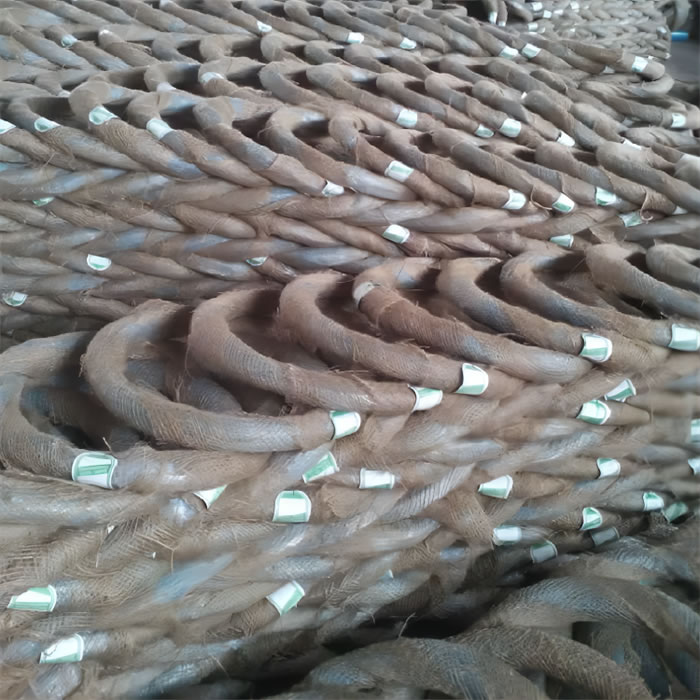

Package: Galvanzied iron wire Can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire. Single coil package can be as small as 1 kg and up to maximum 500 kg per coil. Plastic film inside then wapped with plastic or hessian cloth. small coil packing with water-proof paper, the packing with carton or wooden case.
Application: It is widly use in construction, highway enclosure, communication equipment, medical equipment, making mesh, brush and craft etc.
Specification:
| wire gauge size | SWG(mm) | BWG(mm) | metric(mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | - |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
